Description
Details
The new boxed radius arm allows direct replacement of radius arm without using radius arm drop brackets.
Dropped track bar bracket to keep the front axle centered.
Full 6” replacement coils with factory like ride.
Matched pitman arm and track bar angles to eliminate bump steer.
Replacement transmission mount to alleviate drive line vibrations
Rear lift is accomplished w/ offset tapered block that keeps the axle centered.
Heavy duty semi-gloss powder coat that looks great.

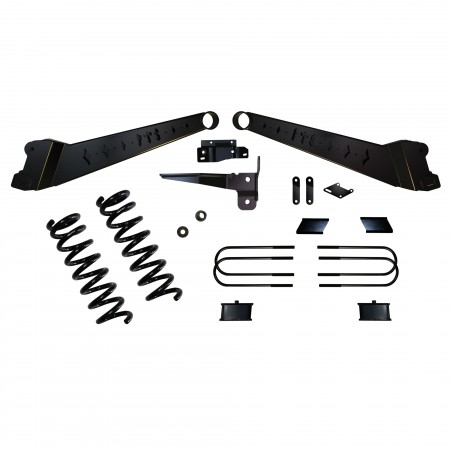

Kit Includes the Following:
66858 6” Radius Arm W/ Front Coil Springs
66858- 6 Component Box 1 Front
66854-2 Component Box 2 Rear
66855-10 6” Front Coil Springs
Additional Info
Additional Info
| Name | 2013-2017 RAM 3500 4WD 6" RADIUS ARM |
|---|---|
| SKU | 66858 |
| Application | 2013-2017 RAM 3500 4WD |
| Install PDF | http://fullthrottlesuspension.com/pdf/instructions/66858.pdf |
| Install Rear | No |
