Description
Details
- 100% Bolt On 7” Spindle Kit
- Structural crossmembers constructed of 1/4" thick steel for superior strength
- Utilizes ductile iron steering knuckle for stock alignment;
- Superior driveability both on and offroad
- Option to use your kit with or without torsion bar drops
- Only increases track width by 1/2'' per side
- All 4 factory bump stops incorporated for durability
- Front differential dropped full 7'' for flat C/V angles
- Differential skid plate keeps your diff away from debris
- Heavy duty semi gloss black powder for long life and great looks
- Impact struts to distribute suspension impact throughout the frame
- Less cutting of factory frame and differential then other kits
- Fabricated steel rear block kit with 3/4" U Bolts

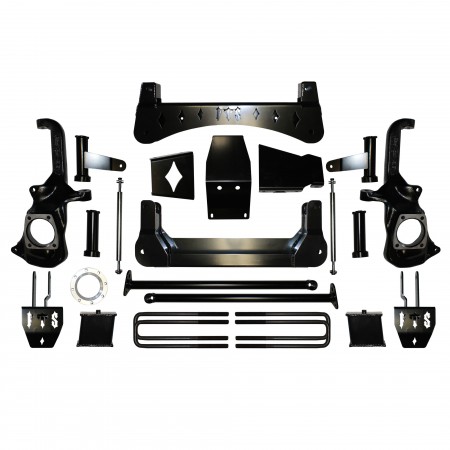

46109 2011-2017 3500HD 4WD 7” TRUCK TORSION BAR DROP KIT
C4600-4 COMPONENT BOX
C4600-10 7” HD STEERING KNUCKLES
C4600-18 4 ½” REAR BLOCK KIT
Max Recommended Tire Size 35” Max Recommended Wheel Width 12”
Max Recommended Tire Size 37’’ Max Recommended Wheel Width 10”
Required 17” or larger Wheel with no more than 5” Backspace
Additional Info
Additional Info
| Name | 2011-2017 7" CHEVY / GMC SILVERADO / SIERRA 4WD 3500HD |
|---|---|
| SKU | 46109 |
| Application | CHEVY/ GMC 2011-2017 4WD 3500HD |
| Install PDF | http://fullthrottlesuspension.com/pdf/instructions/46109.pdf |
| Install Rear | No |
