Description
Details
- Heavy duty long arm construction for superior ride quality and travel
- Lower Arms constructed of 1 .75” DOM tubing w/ urethane bushing on both ends
- Extended Links are over twice the length of the factory arms
- Easy to install long arm brackets utilize factory transmission crossmember
- Moves front axle forward for better fender clearance
- Matched pitman arm drop and track bar bracket to reduce bumpsteer
- Full 6’’ Coil with factory like ride
- New transmission mount to alleviate driveline vibration
- Rear lift is accomplished w/ offset rear lift blocks keep rear axle centered
- Heavy duty semi gloss black powder for long life and great looks
- Kits are available with replacement Coil Springs or upgadable Coilover conversion

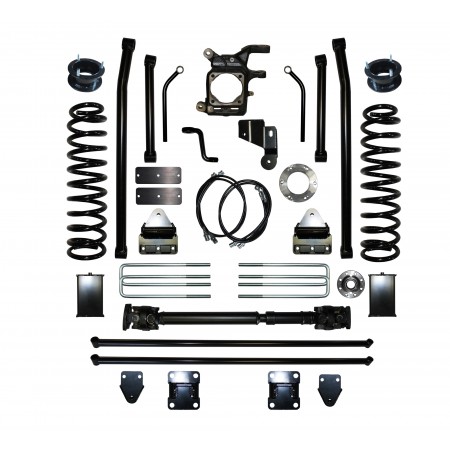

Kit Includes the Following:
63210 2009-2013 4WD 10"DODGE 2500 GAS
2009-2012 4WD 10"DODGE 3500 GAS
63420-4 COMPONENT BOX 1
63420-2 COMPONENT BOX 2
63588 CROSSOVER STEERING KNUCKLE
63210-3 10" GAS FRONT COILS
38505 2" FRONT COIL SPACER
63246 DODGE REAR SHACKLE KIT
64000-18 14 DEGREE TRANSFERCASE RECLOCKING RING
63870 2" REAR DRIVE LINE SPACER
63504 DUAL CV FRONT DRIVE LINE 38"
64000-17 DODGE FRONT AXLE FLANGE
25968 68” BOLT ON TRACTION BAR KIT
Additional Info
Additional Info
| Name | 2009-2013 2500 & 2009-2012 3500 10" LONG ARM DODGE 4WD GAS |
|---|---|
| SKU | 63410 |
| Application | 09-13 2500 DODGE RAM 09-12 3500 DODGE RAM |
| Install PDF | No |
| Install Rear | N/A |
