2008-2017 10" CHEVY / GMC 1500 4WD BASIC SPINDLE KIT (FACTORY STEEL SUSPENSION)

This Basic Spindle Kit for a 2008-2017 Chevy / GMC 1500 4WD Rear Shocks NOT included; But are required. We offer Basic Generic Shocks, or FTS 2.0 R/R Shocks in either Black or Chrome

Availability: In stock

$4,850.99
$4,850.99

fts

Part #
84620

Application:
Chevy / GMC 08-13 1500
Chevy / GMC 14-17 1500 Factory Steel Suspension

Description

Details

  • 100% Bolt on
  • 10” Spindle Kit Front differential is dropped a full 10” to maintain proper CV axle angles
  • Impact struts to distribute front suspension impact loads through frame
  • Utilizes the factory front bump stops for superior ride quality
  • Designed to work with factory stabilitrack and AWD models
  • Semi Gloss black powder-coat for a long lasting great look
  • Fabricated Steel Blocks (Non Casted) w/ Grade 8 U Bolts
  • One piece strut extension no need to remove factory strut
  • No cutting on front differential or factory bump stops
  • Cross-member are constructed of 1/4 “ thick steel
  • Lifetime Warranty against manufactures defects
  • No exhaust modification required

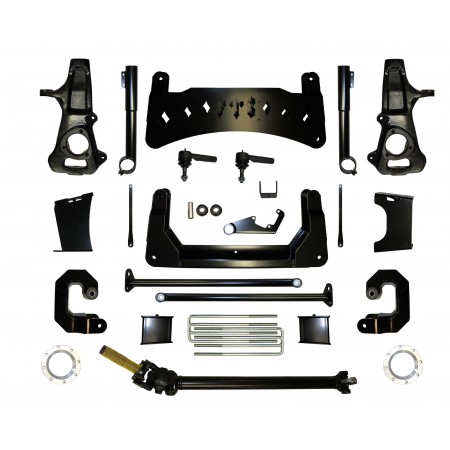

Kit Includes the following:

84620      2008-2015   10" CHEVY / GMC 1500 4WD BASIC KIT
C8460-2        COMPONENT BOX 1 W/ HARDWARE
C8460-9        COMPONENT BOX 2
C8544-10      REAR SHACKLE KIT/ BLOCK KIT
C8460-S        LEFT KNUCKLE/ RIGHT KNUCKLE
84827             STEEL BRAIDED BRAKE LINES

 Max Recommended Tire Size 37“

Max Recommended Wheel Width 12”

Required 17” or larger Wheel with no more than 5” Backspace

Additional Info

Additional Info

Name 2008-2017 10" CHEVY / GMC 1500 4WD BASIC SPINDLE KIT (FACTORY STEEL SUSPENSION)
SKU 84620
Application Chevy / GMC 08-13 1500
Chevy / GMC 14-17 1500 Factory Steel Suspension
Install PDF No
Install Rear No
