Description
Details
- 100% Bolt on
- 10” Spindle Kit Front differential is dropped a full 10” to maintain proper CV axle angles
- Impact struts to distribute front suspension impact loads through frame
- Utilizes the factory front bump stops for superior ride quality
- Designed to work with factory stabilitrack and AWD models
- Semi Gloss black powder-coat for a long lasting great look
- Fabricated Steel Blocks (Non Casted) w/ Grade 8 U Bolts
- One piece strut extension no need to remove factory strut
- No cutting on front differential or factory bump stops
- Cross-member are constructed of 1/4 “ thick steel
- Lifetime Warranty against manufactures defects
- No exhaust modification required

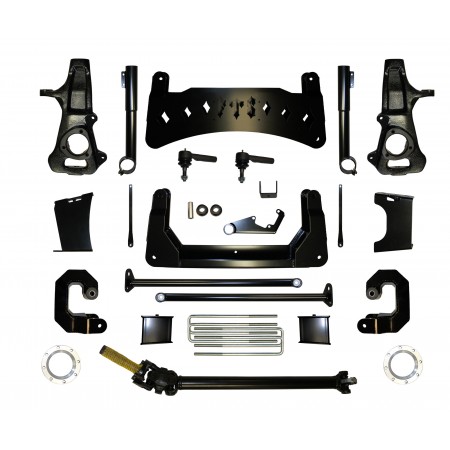

Kit Includes the following:
84602 2007 10" CHEVY / GMC 1500 4WD BASIC KIT
C8460-2 COMPONENT BOX 1 W/ HARDWARE
C8460-9 COMPONENT BOX 2
C8544-10 REAR SHACKLE KIT/ BLOCK KIT
C8460-S LEFT KNUCKLE/ RIGHT KNUCKLE
84826 STEEL BRAIDED BRAKE LINES
Max Recommended Tire Size 37“
Max Recommended Wheel Width 12”
Required 17” or larger Wheel with no more than 5” Backspace
Additional Info
Additional Info
| Name | 2007 10" CHEVY / GMC 1500 4WD BASIC SPINDLE KIT |
|---|---|
| SKU | 84602 |
| Application | Chevy / GMC 2007 1500 |
| Install PDF | No |
| Install Rear | N/A |
