Welcome to Full Throttle

2013-2017 RAM 3500 4WD 8" BASIC KIT W/ FRONT COIL SPRINGS

This Basic Kit for a 2013-2017 DODGE 3500 8" BASIC KIT 4WD GAS or Diesel


Front and Rear Shocks NOT included; But are required.


Availability: In stock

$3,499.99

Front Instructions
Download Here

fts

Part #
66865

Application:
2013-2017 RAM 3500 4WD

Wheel & Tire Size
37" Tires & 10" Wide Wheels

* Required Fields

$3,499.99

Description

Details

The new radius arm relocation brackets ties into both the factory radius arm frame mount and the side of the frame rail for added support.

Dropped track bar bracket to keep the front axle centered.

Full 8” replacement coils with factory like ride.

Matched pitman arm and track bar angles to eliminate bump steer.

Replacement transmission cross member and mount to alleviate drive line vibrations

Reclocking ring allows front drive shaft at full droop not to bind up

Front drive shaft spacer allows the front drive shaft to connect to front differential without lengthening front drive shaft.

Rear lift is accomplished w/ offset tapered block that keeps the axle centered.

Heavy duty semi-gloss powder coat that looks great.

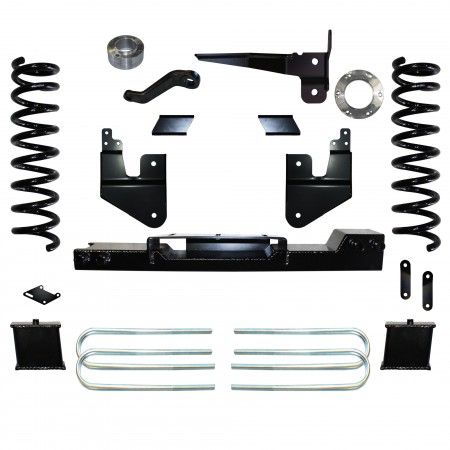

Kit Includes the Following:

66865    8” Basic W/ Front Coil Springs
66865-3       Component Box 1 Front
65864-7       Component Box 2 Front
66864-2       Component Box 3 Rear
66865-10     8” Front Coil Springs
64000-10     Front Drive Shaft Spacer

Depending on what transmission your vehicle came with from the factory. You will receive one of the following reclocking rings.
64000-9      10.4 Degree Reclocking Ring (68RFE Trans)
65830-11    11 Degree Reclocking Ring (ASIN Trans)

Additional Info

Additional Info

Name 2013-2017 RAM 3500 4WD 8" BASIC KIT W/ FRONT COIL SPRINGS
SKU 66865
Application 2013-2017 RAM 3500 4WD
Install PDF http://fullthrottlesuspension.com/pdf/instructions/66865.pdf
Install Rear No
