2009-2013 2500 & 2009-2012 3500 8" Y LINK LONG ARM DODGE 4WD DIESEL

This Basic Kit for a 2009-2013 2500 & 2009-2012 3500 8" Y LINK LONG ARM DODGE 4WD DIESEL Rear Shocks NOT included; But are required. We offer Basic Generic Shocks, or FTS 2.0 R/R Shocks in either Black or Chrome

Availability: In stock

$2,678.99
fts

Part #
63120

Application:
09-13 2500 DODGE RAM
09-12 3500 DODGE RAM

* Required Fields

$2,678.99

Description

Details

  • Heavy duty long arm construction for superior ride quality and travel
  • Lower Arms constructed of 1 .75” DOM tubing w/ urethane bushing on both ends
  • Extended Links are over twice the length of the factory arms
  • Easy to install long arm brackets utilize factory transmission crossmember
  • Moves front axle forward for better fender clearance
  • Matched pitman arm drop and track bar bracket to reduce bumpsteer
  • Full 8’’ Coil with factory like ride
  • New transmission mount to alleviate driveline vibration
  • Rear lift is accomplished w/ offset rear lift blocks keep rear axle centered
  • Heavy duty semi gloss black powder for long life and great looks
  • Kits are available with replacement Coil Springs or upgadable Coilover conversion

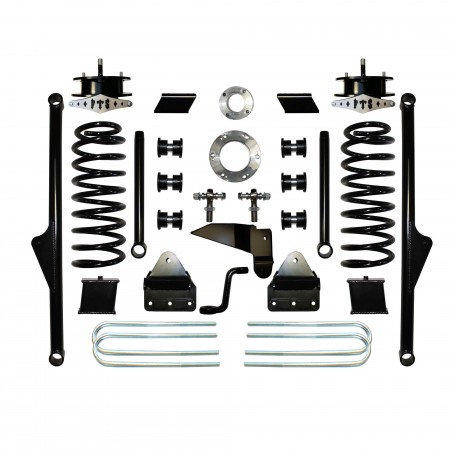

Kit Includes the Following:
  • 2009-2012 8" LONG ARM DODGE 2500/3500 4WD DIESEL W/ REAR BLOCK KIT
  • 63000-18 8" COIL SPRINGS DIESEL
  • 63000-4 Y LINK BARS W/ BUSHING
  • 63000-3 HARDWARE KIT
  • 5" REAR BLOCK / U BOLT KIT
  • RECLOCKING RING 10.4
  • FRONT DRIVE LINE SPACER

Additional Info

Additional Info

Name 2009-2013 2500 & 2009-2012 3500 8" Y LINK LONG ARM DODGE 4WD DIESEL
SKU 63120
Application 09-13 2500 DODGE RAM
09-12 3500 DODGE RAM
Install PDF No
Install Rear No
