2008-2013 FORD F250/F350 10" RADIUS ARM KIT W/ REAR SPRINGS

This Basic Kit for a 2008-20013 FORD F250 / F350. Rear Shocks NOT included; But are required. We offer Basic Generic Shocks, or FTS 2.0 R/R Shocks in either Black or Chrome

Availability: In stock

$4,459.99
fts

Part #
87511

Application:
Ford 08-13 F250 / F350

* Required Fields

$4,459.99

Description

Details

  • 100% Bolt On
  • 10'' Coil Spring with factory like ride
  • Forged pitman arm and track bar drop bracket matched for problem free steering
  • Easy to install radius arm drop brackets or optional replacement radius arm
  • Rear lift block to maintain factory ride and load capacity
  • Maintains factory steering dampener

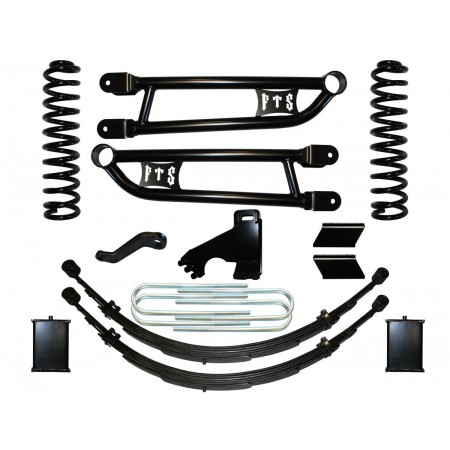

Kit Includes the following:

87511 2008-2013 10" 4WD 2008-2013 FORD F250/350 10" RADIUS ARM KIT W/ REAR SPRINGS
87510-6 10" FRONT COILS
87511-10 10" RADIUS ARMS PAIR
87511-1 10" FRONT BOX KIT
87560-3 6" REAR SPRINGS PAIR
87510-5 5" REAR BLOCK KIT
WITH ONE OF THE BRAKE LINE KITS LISTED BELOW
87510-3 2008-2010 SINGLE REAR STEEL BRAIDED BRAKE LINES
87510-13 2011-2013 DUAL REAR STEEL BRAIDED BRAKE LINES

Max Recommended Tire Size 40“

Max Recommended Wheel Width 10”

Additional Info

Additional Info

Name 2008-2013 FORD F250/F350 10" RADIUS ARM KIT W/ REAR SPRINGS
SKU 87511
Application Ford 08-13 F250 / F350
Install PDF No
Install Rear N/A
